 HZL-G110

HZL-G110

For your gracious time. Full Sized Computer Sewing Machine.

タブコンテンツ1(オレンジ線下から)

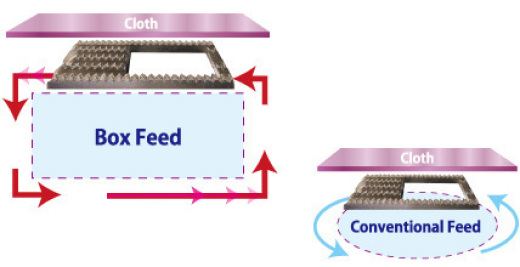

Box Feed - Industrial Sewing Machine Technology

In order to provide beautiful seams and outstanding feed performance, JUKI adopted box feed system. The conventional feed mechanism is oval motion. On the other hand, the box feed moves the feed dog in a box motion. This eliminates material shrinking and shifting.

Box Feed

As the feed dog is in contact with the material longer, the machine feeds the project better.

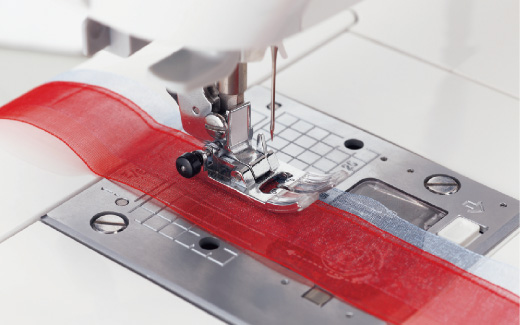

No fabric shrinkage

No fabric shrinkage even sewing on extra light weight materials.

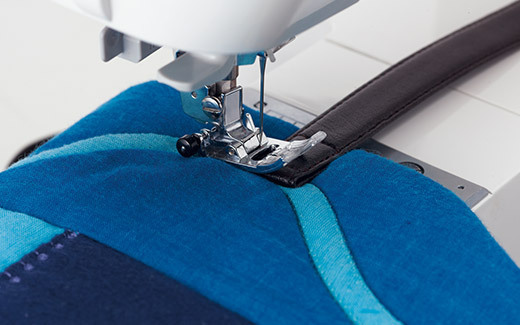

Thick handle can be sewn with ease.

Thick handle can be sewn with ease.

Powerful Feeding

HZL-G series has powerful feeding thanks to the improved presser foot construction. Heavy material projects, such as hemming denim jeans, can be sewn with ease!

3-12-3 layers of denim.

3-12-3 layers of denim.

Other Features

Wide Sewing Space

Wide Sewing Space

HZL-G series has a wide underarm space. It is more enjoyable and comfortable to work with large projects.

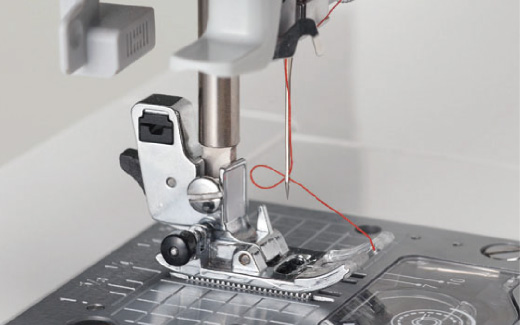

Automatic Needle Threader

Automatic Needle Threader

The Automatic Needle Threader easily threads the needle without eyestrain and allows you to start sewing quickly.

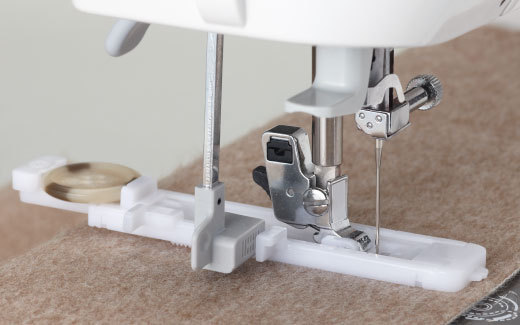

High Quality Buttonholes

High Quality Buttonholes

HZL-G series sews beautiful buttonholes regardless of the type of material. 8 types of buttonholes are available for your needs.

LED Light

LED Lights

LED lights brighten the needle area for better material handling. LED lights will not heat up even during long operations.

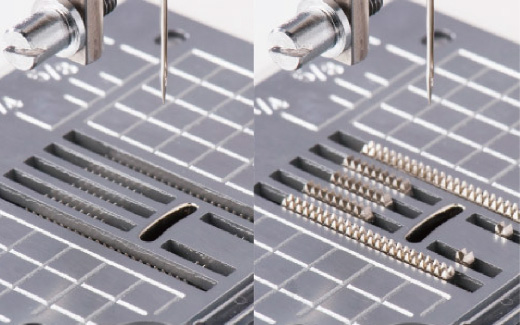

Drop feed

Drop feed

タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)

SPEC / ACCESSORIES

Control system(Arm size)Computer (Arm Size 203㎜)
Dimensions445(W) x 292(H) x 223(D)mm
Weight9.0kg
Maximum sewing speed900 sti/min
Number of stitch patterns80 and Alphabetic/numeric font:1
ButtonholeAutomatic Buttonhole Length: 0.7 - 2.6cm
Direct stitch pattern selection-
Start/stop buttonGreen: Ready to start and/or while sewing Red: Not ready to start Orange: Machine is in bobbin winding condition
Adjustable starting / reverse stitch speed-
Auto thread trimming-
Thread cutter
Automatic needle threader
Thread tension systemStandard
Needle up/down button
Low-speed inching sewing-
Needle stop positionDown
Needle stop position switching
Lock stitchReverse stitch (Button system) Reinforcement stitch pattern Automatic lock stitch
Feed mechanism7 point feed dog BOX Feed
JUKI Smart Feed (dual feed function)-
Presser foot pressure adjustment-
Auto presser foot lift system-
Micro-lifter-
Function to straight-line stitchingThroat plate for straight stitch (option)
Presser foot pivot function-
Presser foot lift (1 step/2 steps)Lever system: 5.5mm / 12mm
Horizontal presser foot holder button
Drop feed
Quick bobbin preparation-
Easy bobbin winding (Bobbin winder with independent motor)-
Bobbin thread detection-
Stitch lengthButton system / LCD numerical display Max. 5mm
Stitch widthButton system / LCD numerical display Max. 7mm
Number of needle position (straight stitch/other than straight stitch)37 / -
Pattern reverse-
Twin needle sewing-
Lock mode-
Elongation-
Save/call of patterns-
Light1 LED light
Type of hookHorizontal hook
Free arm
Cord reel-
Knee lifting lever-
Foot controller
Wide tableOption
Accessory storageAuxiliary bed
Sewing machine coverHard case
Operation supportDVD
Supported languages-
Accessories (presser feet)Standard presser foot (A) Overcasting presser foot (C) Buttonhole presser foot (E) Manual buttonhole presser foot (I)
Other accessories_1Bobbin (4) Needle set HA X 1 #11(1):#14(1):#16(1):for knit #11(1) T-shape screwdriver Ripper Cleaning brush/Spool cap (large) Spool cap (small) Foot controller Power cord Hard case Instruction manual Operation support DVD
Other accessories_2

INCLUDED ACCESSORIES

Standard Presser Foot

It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.

Movie

Overcasting Presser Foot (Overedge Foot)

Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 4-point zigzag.

Movie

Buttonhole Presser Foot

You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.

Movie

Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)

The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.

Movie

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

Movie

Foot Controller

Controlling the sewing machine with your foot leaves both of your hands free while sewing.

Bobbin(1pc)

Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.

OPTIONAL ACCESSORIES

Button Attaching Presser Foot

Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.

Movie

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

Movie

Adjustable Zipper Foot

The position of the adjustable zipper presser foot can be changed over to the right and left of the needle to allow the sewing machine to sew the material while avoiding its thicker part such as a zipper.

Narrow Zipper Foot

Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.

Movie

Invisible Zipper Foot

Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.

Movie

Blind Stitch Presser Foot (Blind Hem Foot)

By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.

Movie

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.

Movie

Roller Foot

The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.

Movie

Rolled Hemming Presser Foot

The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.

Movie

Hemming Presser Foot for Zigzag

The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.

Movie

Binder Presser Foot

After tape with a width of about 0.75" to 1.0" (22 to 25 mm) is passed through the guide, this presser foot creates double-fold tape with a width of about 0.2" (5 mm) and sews it to bind the fabric. Single-fold tape with a width of about 0.4" to 0.5"(10 to 13 mm) can also be used. You can move the guide to the left or right to adjust the needle entry point.

Movie

Walking Foot

This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding. By inserting the quilt guide bar, this presser foot can be used to quilt equally spaced seams.

Movie

Patchwork Presser Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Normal type and for JUKI Smart Feed.)

Movie

1/4“ Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.

Presser Foot with Guide

On the right side of the presser foot, there are guidelines at a 2 mm spacing from 0 to 2 cm from the center of the needle entry opening (center needle position). This presser foot is useful when sewing parallel straight or decorative stitching.

Movie

Ditch Sewing Presser Foot (Edge Sewing Presser Foot)

The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )

Movie

Compact Guide Edge Sewing Foot

This presser foot has a shorter guide at its center. With this shorter guide, smoother feed of the material is promised. Furthermore, it is expected to reduce uneven material feed. The marks on the left side of the presser foot will be the guide for the outline quilting. By changing the needle base line, you can sew the single lap stitching with ease.

Movie

Quilt Presser Foot

With the feed dogs lowered, you can freely move the fabric to draw using stitching. Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.

Movie

Quilt Presser Foot (for Ruler)

With a distance of 1/4" (6.5 mm) from the needle entry point to the outer edge of the presser foot, sew using a ruler as a guide. The front of the presser foot is lowered, making it easier to see the needle area. Adjust the height of the presser foot according to the thickness of the fabric.

Quilt Presser Foot (Open Type)

Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.

Movie

Quilt Presser Foot (Zigzag Type)

The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches. Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.

Movie

Open Toe Presser Foot

The wide opening at the front of this presser foot makes appliques and designs easy to see, which is useful for curvy decorative stitching. The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.

Movie

Applique Presser Foot

Since the front and back of this presser foot are short and transparent, appliqu?s and designs are easy to see, and you can easily sew sharp curves. The pin at the back keeps the presser foot horizontal, stabilizing it even when sewing appliqu?s.

Movie

Pearl Attaching Presser Foot

Pass the strand of pearls or beads up to a diameter of 4 mm through the dome-shaped groove in the center of the presser foot, and then sew with a zigzag stitch. This presser foot can also be used for sewing on thick cording, braiding or piping cord, even on curves.

Movie

Fringe Foot

This foot has a claw at its center. It is used for forming loops by laying the thread over the claw. This presser foot can be used for sewing decorative stitches on workpieces by making three-dimensional thread loops and fringes on the edge of the fabric with your favorite threads.

Movie

Cording and Embroidery Presser Foot

This presser foot has a hole for supplying cording to be sewn over. With the feed dog lowered, you can freely move the fabric to create simple embroidery with cording.

Movie

Cording Presser Foot (for 3 Cords)

Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.

Movie

7 Hole Cording Foot

This presser foot is provided with seven cord insertion holes of approximately 1 mm in diameter. As many as seven (1 to 7) thin cord(s) or embroidery thread(s) can be sewn using these holes while neatly arranging them in parallel (in the case of two or more cords / threads are used).

Gathering Foot

Change the stitch length, thread tension and presser foot pressure to adjust the amount of fabric that is gathered. You can also use this presser foot to sew two pieces of fabric together while creating gathers in only the lower piece.

Movie

Dedicated Hook for Thick Thread Decoration

Wrap the thread you want to decorate around the bobbin and draw a pattern with pattern stitching or free motion.

Throat Plate for Straight Stitch

This needle plate is used to sew the straight stitch with the center needle position. Creates perfect needle feed for light weight fabrics or corner to corner stitching in patchwork piecing. HZL-G210/G110 Part No. 40080968 & 40064685(hook cover)

Movie

Magnetic Gauge

A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.

Movie

Ruler Kit (HZL type)

Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The thickness of these rulers are 3mm.

Wide Table

After removing the auxiliary bed, this table can easily be installed by fitting it into place.

Advanced Quilter's Kit

This set contains the following: Edge Sewing Presser Foot, Quilt Presser Foot (Open Type), Quilt Presser Foot (Zigzag Type), Open Toe Presser Foot, Applique Presser Foot, Pearl Attaching Presser Foot

Movie

Heavy User Kit

This set contains the following: Button Attaching Presser Foot, Invisible Zipper Foot, Rolled Hemming Presser Foot, Binder Presser Foot, Presser Foot with Guide, Cording and Embroidery Presser Foot

Movie

Creative Set

This set contains the following: Applique Presser Foot, Cording and Embroidery Presser Foot, Pearl Attaching Presser Foot, Cording Presser Foot (for 3 Cords), Presser Foot with Guide, Open Toe Presser Foot, Bobbin x5

タブコンテンツ2(オレンジ線上まで)
タブコンテンツ3(オレンジ線下から)

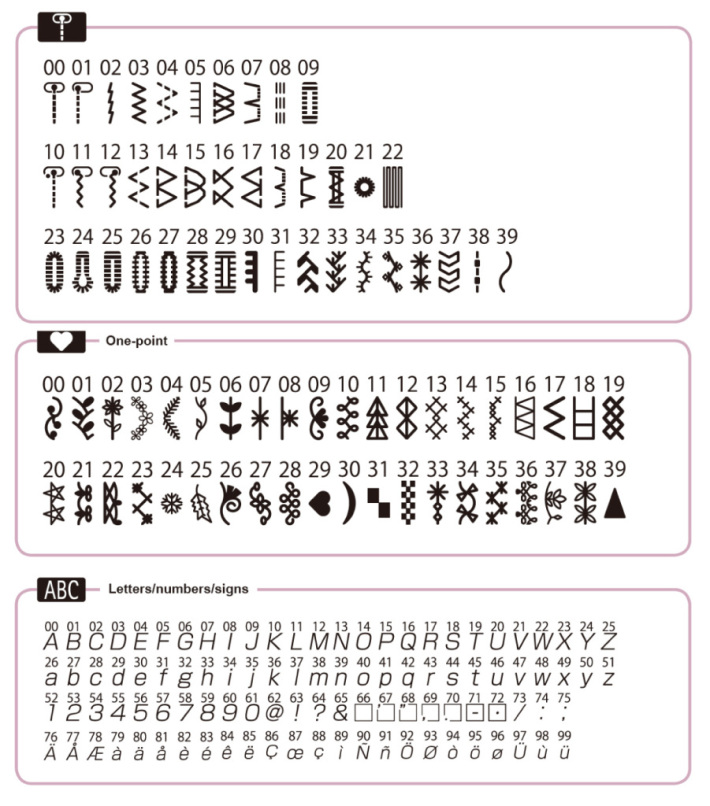

STITCH PATTERNS

STITCH PATTERNS
