Sewing Evolution EXCEED Series in Stitch Quality and Sewing Specifications.
In order to provide beautiful seams and outstanding feed performance, JUKI adopted box feed system. The conventional feed mechanism is oval motion. On the other hand, the box feed moves the feed dog in a box motion. This eliminates material shrinking and shifting. This accurate feeding system provides superior stitch quality for a variety of light to heavy weight fabrics.
As the feed dog is in contact with the material longer, the machine feeds the project better.
No fabric shrinkage even sewing on extra light weight materials.
Thick handle can be sewn with ease.
HZL-F series has powerful feeding thanks to a special steel feed dog and improved presser foot construction. Heavy material projects, such as hemming denim jeans, can be sewn with ease!
3-12-3 layers of denim.
Using a unique sensor method, HZL-F series sews beautiful buttonholes regardless of the type of material and overlapped sections.
16 types of buttonholes are available for your needs.
1. Standard, 2. Rounded end, 3. Keyhole, 4. For knit, 5. Decorative
Cutting Width Adjustment of the buttonhole!!
Now it is possible to adjust the cutting width in 3 steps.
HZL-F series trims both needle and bobbin threads automatically by pressing the heel side of the foot controller. With this feature you can concentrate on your project while automatically cutting the thread.
It is also possible to trim threads with a button located at machine body.
Frequently used stitch patterns can be selected directly through the Direct Select mode.
Piecing
Zigzag stitch for applique
Free motion sewing with stable thread tensions.

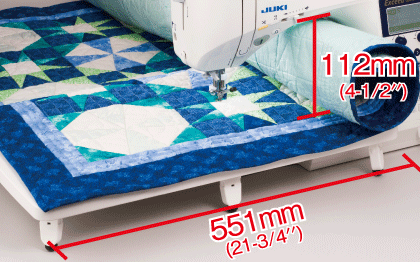

HZL-F series has a wider underarm space, with a wider table it is more enjoyable and comfortable to work with large projects.
Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 12 mm when the lever is used.
Needle can be threaded quickly and easily.
Just follow the guide and it is not necessary to pull up the bobbin thread.
Independent motor winds the bobbin thread. The bobbin preparation is easy.
Presser foot pressure can be adjusted for better sewing results according to the type of materials to be sewn.
LED lights brighten the needle area and sewing area for better material handling.
F600 will create the width of select quilting stitch patterns automatically and at random. This will give your quilting project an enjoyable look without any hassle.

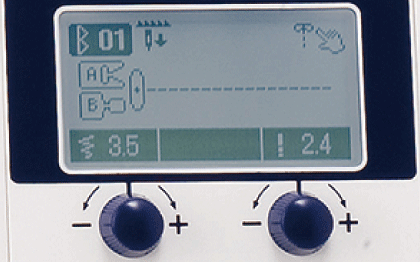

It is possible to change the stitch length, width and needle-position by turning the adjusting dials. It is easy to change the settings while sewing.
Control system(Arm size) | Computer (Arm Size 203㎜) |
Dimensions | 445(W) x 291(H) x 210(D)mm |
Weight | 9.8kg (21.6LBS) |
Maximum sewing speed | 900 sti/min |

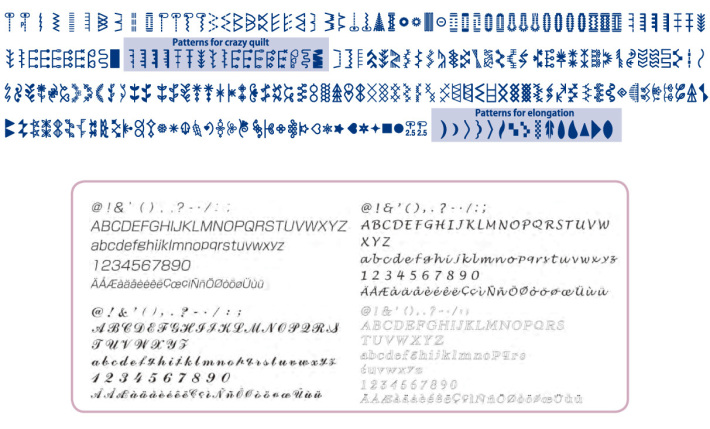

Number of stitch patterns | 225 and Alphabetic/numeric fonts:4 |
Buttonhole | Automatic (sensor system) with clamping plate Cutting width adjustment Buttonhole Length: 0.7 - 3.2cm |
Direct stitch pattern selection | 〇 |
Start/stop button | Green: Ready to start and/or while sewing Red: Not ready to start |
Adjustable starting / reverse stitch speed | - |
Auto thread trimming | 〇 |
Thread cutter | 〇 |
Automatic needle threader | One hand |
Thread tension system | Automatic |
Needle up/down button | 〇 |
Low-speed inching sewing | - |
Needle stop position | Down |
Needle stop position switching | 〇 |
Lock stitch | Reverse stitch (Button system) Reinforcement stitch pattern Automatic lock stitch and thread trimming |
Feed mechanism | 7 point feed dog BOX Feed |
JUKI Smart Feed (dual feed function) | - |
Presser foot pressure adjustment | Stepless adjustment |
Auto presser foot lift system |
Micro-lifter | - |
Function to straight-line stitching | Throat plate for straight stitch (option) |
Presser foot pivot function | - |
Presser foot lift (1 step/2 steps) | Lever system: 5.5mm / 12mm |
Horizontal presser foot holder button | 〇 |
Drop feed | 〇 |
Quick bobbin preparation | 〇 |
Easy bobbin winding (Bobbin winder with independent motor) | 〇 |
Bobbin thread detection | - |
Stitch length | Dial system / LCD numerical display Max. 5mm |
Stitch width | Dial system / LCD numerical display Max. 7mm |
Number of needle position (straight stitch/other than straight stitch) | 37 / - |
Pattern reverse | left/right |
Twin needle sewing | 〇 |
Lock mode | - |
Elongation | 〇 |
Save/call of patterns | 10 patterns |
Light | 2 LED lights |
Type of hook | Horizontal hook |
Free arm | 〇 |
Cord reel | - |
Knee lifting lever | 〇 |
Foot controller | with thread trimming function |
Wide table | 〇 |
Accessory storage | Auxiliary bed/ accessories bag |
Sewing machine cover | Hard case with accessory storage part |
Operation support | DVD Operation guide |
Supported languages | spec_light8lang |
Accessories (presser feet) | Standard presser foot (A) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Walking foot (N) Open toe presser foot (O) Patchwork presser foot (P) Quilt presser foot (Q) Edge sewing presser foot (R) Smooth presser foot (T) |
Other accessories_1 | Bobbin (4) Needle set HA X 1 #11(1):#14(1):#16(1):for knit #11(1) Twin needle Quilt guide Auxiliary spool pin T-shape screwdriver Ripper Cleaning brush Spool cap (large) Spool cap (middle) Spool cap (small) Eyelet punch Wide table Foot controller Knee-lifting lever Power cord Hard case Instruction manual Operation support DVD |
Other accessories_2 |
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.
This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.
This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding. By inserting the quilt guide bar, this presser foot can be used to quilt equally spaced seams.
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Normal type and for JUKI Smart Feed.)
The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )
With the feed dogs lowered, you can freely move the fabric to draw using stitching. Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.
The wide opening at the front of this presser foot makes appliques and designs easy to see, which is useful for curvy decorative stitching. The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.
Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted. You can use this guide inserting from either the right side or the left side.
For beautiful decorative stitches two threads can be a perfect addition. Also it is used for sewing pintucks with the pintuck feet. Set the sewing machines with 2 needle settings with optional functions. Not all stiches are approved for twin needle design.
Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.
After removing the auxiliary bed, this table can easily be installed by fitting it into place.
Controlling the sewing machine with your foot leaves both of your hands free while sewing. You can trim threads and or do another operations by pressing on the another switch of the foot controller.
Using your knee to push the lever to the right raises the presser foot,and when you return it will lower the presser foot.
Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.
Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.
The position of the adjustable zipper presser foot can be changed over to the right and left of the needle to allow the sewing machine to sew the material while avoiding its thicker part such as a zipper.
Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.
Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.
The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.
The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.
The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.
After tape with a width of about 0.75" to 1.0" (22 to 25 mm) is passed through the guide, this presser foot creates double-fold tape with a width of about 0.2" (5 mm) and sews it to bind the fabric. Single-fold tape with a width of about 0.4" to 0.5"(10 to 13 mm) can also be used. You can move the guide to the left or right to adjust the needle entry point.
When sewing pintucks in parallel, the 9 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.
When sewing pintucks in parallel, the 7 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.
On the right side of the presser foot, there are guidelines at a 2 mm spacing from 0 to 2 cm from the center of the needle entry opening (center needle position). This presser foot is useful when sewing parallel straight or decorative stitching.
This presser foot has a shorter guide at its center. With this shorter guide, smoother feed of the material is promised. Furthermore, it is expected to reduce uneven material feed. The marks on the left side of the presser foot will be the guide for the outline quilting. By changing the needle base line, you can sew the single lap stitching with ease.
With a distance of 1/4" (6.5 mm) from the needle entry point to the outer edge of the presser foot, sew using a ruler as a guide. The front of the presser foot is lowered, making it easier to see the needle area. Adjust the height of the presser foot according to the thickness of the fabric.
Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.
The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches. Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.
Since the front and back of this presser foot are short and transparent, appliqu?s and designs are easy to see, and you can easily sew sharp curves. The pin at the back keeps the presser foot horizontal, stabilizing it even when sewing appliqu?s.
Pass the strand of pearls or beads up to a diameter of 4 mm through the dome-shaped groove in the center of the presser foot, and then sew with a zigzag stitch. This presser foot can also be used for sewing on thick cording, braiding or piping cord, even on curves.
This foot has a claw at its center. It is used for forming loops by laying the thread over the claw. This presser foot can be used for sewing decorative stitches on workpieces by making three-dimensional thread loops and fringes on the edge of the fabric with your favorite threads.
This presser foot has a hole for supplying cording to be sewn over. With the feed dog lowered, you can freely move the fabric to create simple embroidery with cording.
Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.
This presser foot is provided with seven cord insertion holes of approximately 1 mm in diameter. As many as seven (1 to 7) thin cord(s) or embroidery thread(s) can be sewn using these holes while neatly arranging them in parallel (in the case of two or more cords / threads are used).
Change the stitch length, thread tension and presser foot pressure to adjust the amount of fabric that is gathered. You can also use this presser foot to sew two pieces of fabric together while creating gathers in only the lower piece.
Wrap the thread you want to decorate around the bobbin and draw a pattern with pattern stitching or free motion.
This needle plate is used to sew the straight stitch with the center needle position. Creates perfect needle feed for light weight fabrics or corner to corner stitching in patchwork piecing. HZL-G210/G110 Part No. 40080968 & 40064685(hook cover)
A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.
Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The thickness of these rulers are 3mm.
Installing this stopper on the foot controller disables the function that is activated by stepping on the controller with your heel.
This set contains the following: Edge Sewing Presser Foot, Quilt Presser Foot (Open Type), Quilt Presser Foot (Zigzag Type), Open Toe Presser Foot, Applique Presser Foot, Pearl Attaching Presser Foot
This set contains the following: Button Attaching Presser Foot, Invisible Zipper Foot, Rolled Hemming Presser Foot, Binder Presser Foot, Presser Foot with Guide, Cording and Embroidery Presser Foot
This set contains the following: Applique Presser Foot, Cording and Embroidery Presser Foot, Pearl Attaching Presser Foot, Cording Presser Foot (for 3 Cords), Presser Foot with Guide, Open Toe Presser Foot, Bobbin x5
Hawaiian quilt
Quilt tapestry
Quilt bag
