The needle threader easily threads the needle and allows you to start sewing quickly.
The color of the start/stop button indicates the status of the machine.
[Green] Ready to start or while sewing
[Red] Not ready to start
[Orange] In bobbin winding condition
Reverse Stitch, Reinforcement Stitch
HZL-H series can sew a lock stitch at the beginning and end of sewing. There are two types of lock stitch, reverse stitch and reinforcement stitch.
Needle Up/Down Position Button
Press the button to change up/down position of needle instantly. Also you can change needle stop position and can even sew a half stitch.
HZL-H series sews the buttonhole automatically according to the size of the button.
When sewing thin or thick fabrics, you can get comfortable feed.
The Current Setting is Very Visible
You can change the size of stitch patterns as well as the needle positions.
Manuals can be seen quickly and easily through the pull type.
・ Free Arm
・ Drop-in Bobbin
・ Drop Feed
・ Easy to Start Sewing Thick Fabrics
・ Button Sewing
1. Standard Presser Foot, 2.Zipper Foot, 3. Decorate Stitch Foot,
4. Overcasting Foot, 5. Blind Stitch Foot, 6. Button Sewing Foot,
7. Buttonhole Foot, 8. Seam Ripper/ Brush, 9. Screwdriver(S),
10. Screwdriver(L-shape), 11. Auxiliary Spool Pin, 12. Bobbin(3x),
13. Quilt Guide, 14. Spool Cap(Large), 15. Spool Cap(Small),
16. Spool Pin Felt, 17. Pack of Needles(3x)
Hard Case
Foot Controller
タブコンテンツ1(オレンジ線上まで)
タブコンテンツ2(オレンジ線下から)
Control system(Arm size) | Computer (Arm Size 163㎜) |
Dimensions | 400(W) x 290(H) x 188(D)mm |
Maximum sewing speed | 800 sti/min |

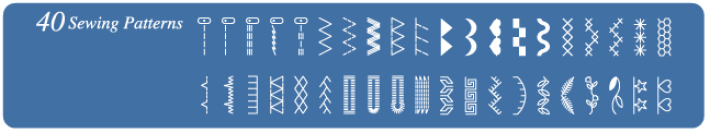

Number of stitch patterns | 40 |
Buttonhole | Automatic
Buttonhole Length: - 3.0cm |
Direct stitch pattern selection | - |
Start/stop button | Green: Ready to start and/or while sewing
Red: Not ready to start
Orange: Machine is in bobbin winding condition |
Adjustable starting / reverse stitch speed | - |
Automatic needle threader | 〇 |
Thread tension system | Standard |
Needle up/down button | 〇
(Needle stop position switching) |
Low-speed inching sewing | - |
Needle stop position switching | 〇
(Needle up/down button) |
Lock stitch | Reverse stitch (Button system)
Reinforcement stitch (Button system) |
Feed mechanism | 7 point feed dog |
JUKI Smart Feed (dual feed function) | - |
Presser foot pressure adjustment | Stepless adjustment |
Auto presser foot lift system | - |
Function to straight-line stitching | - |
Presser foot pivot function | - |
Presser foot lift (1 step/2 steps) | Lever system: 6mm / 12mm |
Horizontal presser foot holder button | 〇 |
Quick bobbin preparation | 〇 |
Easy bobbin winding (Bobbin winder with independent motor) | - |
Stitch length | Slide lever system
Max. 4.5mm |
Stitch width | Slide lever system
Max. 7mm |
Number of needle position (straight stitch/other than straight stitch) | 15 / - |
Twin needle sewing | 〇
(Twin needle is option) |
Type of hook | Horizontal hook |
Accessory storage | Auxiliary bed |
Sewing machine cover | Hard case |
Accessories (presser feet) | Standard presser foot (T)
Zipper foot (I)
Buttonhole foot (D)
Overcasting foot (E)
Blind stitch foot (F)
Decorate stitch foot (A)
Button sewing foot |
Other accessories_1 | Bobbin (3x)
Spool cap (Large)
Spool cap (Small)
Spool pin felt
Auxiliary spool pin
Screwdriver (L-shape & S)
Quilt guide
Seam ripper/ brush
Pack of needles(3x)
Power cord
Foot controller
Hard case
Instruction manual
Operation support DVD |
Standard Presser Foot
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.
Movie
Overcasting Presser Foot (Overedge Foot)
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage.
This presser foot cannot be used to sew zigzag stitches or overcasting by 5-point zigzag.
Movie
Buttonhole Presser Foot
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.
Movie
Decorate Stitch Presser Foot
(Manual BH Presser Foot/Satin Stitch Foot)
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed.
Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.
Movie
Button Attaching Presser Foot
Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button.
To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.
Zipper Presser Foot
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn.
This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.
Movie
Blind Stitch Presser Foot with adjustment guide / Blind Hem Foot with adjustment guide
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch.
Adjust the guide position according to the fabric before sewing.
Movie
Quilt Guide
Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching.
Adjust the spacing of the stitching by changing how far this guide is inserted.
Movie
Auxiliary Spool Pin (Additional Spool Pin)
Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.
Foot Controller
Controlling the sewing machine with your foot leaves both of your hands free while sewing.
Bobbin
Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.
Adjustable Zipper Foot
The position of the adjustable zipper presser foot can be changed over to the right and left of the needle to allow the sewing machine to sew the material while avoiding its thicker part such as a zipper.
Roller Foot
The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.
Movie
Rolled Hemming Presser Foot
The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem.
This presser foot can be used on light-weight to medium-weight fabric.
Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.
Movie
Straight Stitch Presser Foot
Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.
Movie
Pintuck Foot Narrow
When sewing pintucks in parallel, the 9 slits on the bottom of the presser foot can be used as a guide.
Pintucks are suited to light-weight soft materials.
Pintucks of stable shape can be produced while putting a cord in each pintuck.
Movie
Pintuck Foot Wide
When sewing pintucks in parallel, the 7 slits on the bottom of the presser foot can be used as a guide.
Pintucks are suited to light-weight soft materials.
Pintucks of stable shape can be produced while putting a cord in each pintuck.
Movie
Walking Foot
This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding.
Movie
Quilt Presser Foot (Zigzag Type)
The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches.
Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.
Cording Presser Foot (for 3 Cords)
Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.
Movie
Gathering Foot
Change the stitch length, thread tension and presser foot pressure to adjust the amount of fabric that is gathered.
You can also use this presser foot to sew two pieces of fabric together while creating gathers in only the lower piece.
Movie
Twin Needle
For beautiful decorative stitches two threads can be a perfect addition.
Also it is used for sewing pintucks with the pintuck feet. Set the sewing machines with 2 needle settings with optional functions. Not all stiches are approved for twin needle design.
Movie
Magnetic Gauge
A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.
Movie
Wide Table
After removing the auxiliary bed, this table can easily be installed by fitting it into place.
