PRODUCTS
TL-2000Qi
1-Needle, Lockstitch, Portable Sewing Machine
with automatic thread trimmer for quilting, tailoring, apparel and home decor

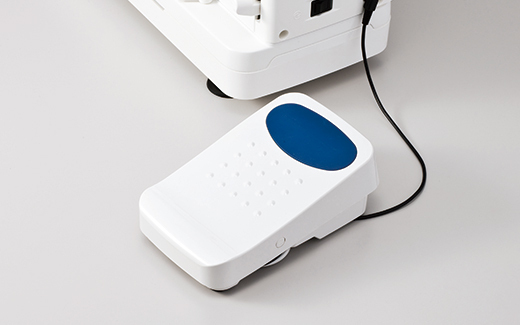

Foot Controller with Thread Trimming Function
It is possible to automatically trim both needle and bobbin threads by pressing the heel side of foot controller. The foot controller is big enough and it is easy to control sewing-start and -stop.
LED Light
LED light brightens the needle area for better material handling.
Automatic Thread Trimmer
The machine is equipped with an automatic thread trimming device that simultaneously trims the needle and bobbin threads at the sewing end by lightly pressing the push-button. It uses the thread trimming mechanism that is similar to the industrial sewing machine type, trimming thin through thick threads without fail. Auto thread trimming may also be activated by the foot controller.
Other Features
Automatic Needle Threader
The push lever automatic needle threader easily threads the needle without eyestrain and allows you to start sewing quickly.
Even Feed Foot
With its reliable feed, the even feed foot ensures the machine's ability to produce beautiful seams when sewing difficult-to-feed fabrics such as georgette and velvet, as well as heavy weight materials such as leather. The even feed foot is ideal for sewing multiple layers of fabric evenly.
Heavy-Weight Materials are sewn with Ease
The speed control mechanism, operated by microcomputer, allows the machine to sew materials at low speeds. This provides for accurate feed and perfect stitching when sewing heavy weight fabrics, quilting and multiple layers of materials.
Knee Lifter Lever
The knee lifter lever allows you to lift/lower the presser foot without using your hands. The presser foot can be raised as high as 12mm, so that light to heavy weight materials are easily handled in and out of the sewing area with ease.
Predetermined Stop Position of the Needle
When you stop sewing, the machine will come to an accurate stop with the needle down. To move the needle up or down as desired, simply press the needle up/down button. When the button is pressed continuously, the machine sews stitch by stitch at low speed.
Easy Bobbin Replacement
A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin. When the auxiliary table is being utilized, it is equipped with a sliding plate that allows convenient access to remove and load bobbins as well.
Adjustment of Presser Foot Pressure
Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine. The pressure amount can then be viewed at a pressure indicator.

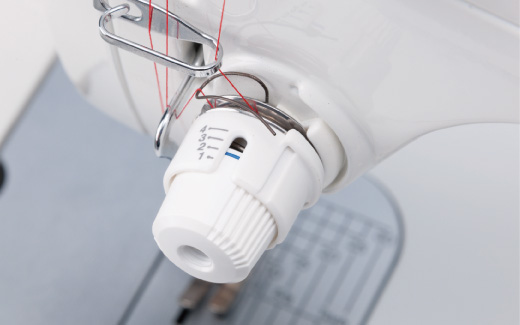

Thread Tension Scale
The machine is provided with the thread tension scale, which allows you to adjust the tension according to the thread and material to be used.
Drop Feed
The feed dog can be raised and lowered simply by turning the lever. When quilting, the drop feed allows you to sew curved stitches with ease. With a wide variety of optional quilting feet, you can used to enhance your quilting experiences.
Needles
The machine is supplied with HA-type needles, the identical type used with home sewing machines and home sergers. This type of needle cannot be attached incorrectly.
Larger Work Area
The machine has a wider handling area than a conventional sewing machine adding space to maneuver large size materials or rolls of quilting fabric. An auxiliary table is supplied for extending the work area for quilting and larger sewing projects.
The Machine is Light-Weight and Portable
This portable, lightweight machine is easy to transport and can be carried wherever you desire.
Industrial Machine Engineering
The arm and bed of the TL-2000Qi are constructed of aluminum die-casting. This tough body lowers vibration while sewing and ensures high quality stitching. Since the TL-2000Qi has many industrial sewing machine features, it is possible to attach several types of industrial presser feet. (For more details, please contact the dealer near you.)
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 452(W) x 350(H) x 219(D)mm |
| Arm size |
215(W) x 150(H)mm 8.5"(W) x 6"(H) |
| Auxiliary table dimensions | 590(W) x 335(D)mm 23"(W) x 13"(D) |
| Dimensions with auxiliary table | 720(W) x 335(D)mm |
| Weight | 11.5kg / 25.4Lb |
| Sewing speed | Min. 55 - Max. 1,500SPM |
| Needle | HA x 1 (130/705H)/ HL x 5 #9-#18 |
| Auto thread trimming | ✓ |
| Thread cutter | ✓ |
| Speed control knob | - |
| Automatic needle threader | ✓ |
| Thread tension dial scale | ✓ |
| Sub tension unit | - |
| Needle stop position | Down |
| Needle up/down &Low-speed inching sewing button | ✓ |
| Drop feed | ✓ |
| Presser foot pressure adjustment | Stepless adjustment |
| Float function(micro-lifter) | - |
| Presser foot lift (1 step/ 2 steps) | By lever 7/9mm, by knee lifter 12mm |
| Stitch length | 0 - 6 mm |
| Light | LED |
| Type of hook | Horizontal-axis Full-rotary Hook |
| Bobbin case | Bobbin case with bobbin hold/removal function by latch |
| Attachment mounting plate | - |
| Foot controller | ✓ with thread trimming function |
| Auxiliary table | ✓ |
| Knee lifting lever | ✓ |
| Accessories (presser feet) |
Standard presser foot Even feed foot |
| Other accessories | Bobbins (4) Needles (HAx1) Foot controller Auxiliary table Knee lifter lever Sewing machine cover Power cord Exclusive screwdriver Screwdriver (small) Oiler Spool cap Cleaning brush Instruction manual |
OPTIONAL PARTS

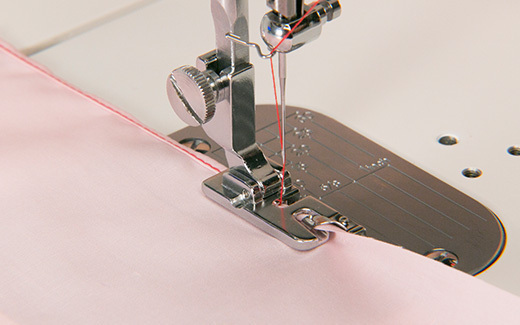

Hemming foot

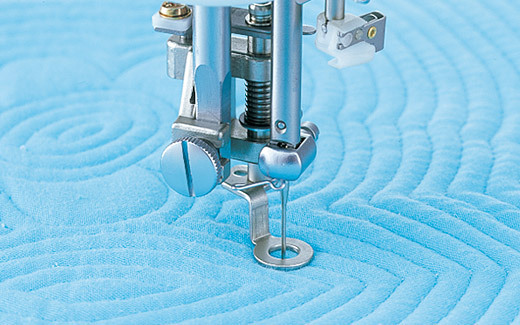

Echo Quilting Foot

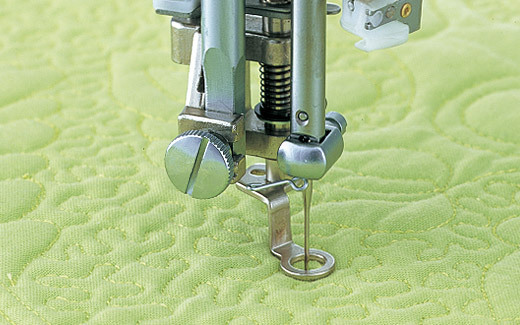

1/5" Quilting foot
1/4" Quilting foot
タブコンテンツ3（オレンジ線下から）
SEWING SAMPLES
Quilt tapestry
Quilt cushion cover
Quilt bed cover
