TL-18QVP Haruka
TL-18QVP is a single needle, lock-stitch, portable sewing machine, constructed of aluminum die-casting to ensure industrial-quality sewing. Exceptional quilting with new built-in float function.
As a reflection of JUKI’s Japanese heritage, the TL-18QVP was named Haruka meaning “beyond.” Go beyond expectation with Haruka!
Float Function (micro-lifter) 【NEW】
Now equipped with the same mechanism as JUKI industrial sewing machines for preventing uneven sewing on quilts and velvet, as well as stretched stitches on knit fabrics. The presser foot floats 0 to 2 mm above the material, making it useful for sewing over thick seams.
The height of the presser foot can be adjusted by turning the micro-lifter dial to allow the sewing machine to begin sewing with the presser foot slightly lifted (by approximately up to 2 mm).
Sub Tension Unit
No matter the thread type, sub-tension ensures stitches are sewn with a balanced thread tension. Achieve Perfectly balanced threads with every stitch.
Strongly twisted threads can make for unruly stitches. (above)
Sub-tension creates steady stitches by putting an end to stitches that come up.(below)
Sewing Speed Control
The sewing speed can be set between 200 and 1,500 stitches per minute when using the foot controller.
Automatic Needle Threader
The automatic needle threader quickly and easily threads the needle without eyestrain, allowing you to change thread colors as often as you wish.
Attachment Mounting Plate【NEW】
A separate attachment mounting plate for installing fabric guides and other attachments.
This extends the life of the sewing machine, as it can now be replaced when the mounting holes become damaged.
LED Sewing Light Brightness Adjustment Switch 【NEW / JUKI Orijinal】
A switch in the needle area allows you to adjust the brightness of the light between high,medium, low and off.
Adjust the brightness to make hard-to-see seams and stitching area easier to see.
Larger Work Area
With a large work area of up to 23 inches (with auxiliary table attached), the TL-18QVP can handle large quilts with ease.
Other Features
Presser Foot Pressure Adjustment
Turn the regulator on top of the machine to adjust the presser foot pressure according to the thickness of the fabric.
Needle Up/Down and Slow-Motion Switch
【JUKI Orijinal】
Each press of the needle up/down switch moves the needle halfway up or down.
Hold the switch down to sew a slow single stitch ― useful when sewing corners and at the end of stitching.
Drop Feed
The feed dog can be raised and lowered by moving the lever. Perform free-motion quilting and free-hand embroidery with ease.
Foot Controller with Thread Trimming Function
Automatically trim thread by pressing the controller with your heel.
*Automatic thread trimming can be turned off by attaching a foot switch stopper.
Automatic Thread Trimmer
Perfectly trim the needle and bobbin threads with the simple push of a button.
Industrial sewing machine technology provides exceptional durability, noise control and cutting.
Sewing can continue after automatic cutting even if the bobbin thread is not visible above the throat plate.
Sturdy Die-Cast Aluminum Frame
Machine body is made of a die-cast aluminum frame, minimizing vibration and noise.
Professional performance is maintained by employing the same technology found in JUKI industrial sewing machines.
Vertical Full Rotary Hook
A vertical full rotary hook as in JUKI industrial sewing machines produces beautiful balanced and even stitching. Quiet smooth operation even at speeds up to 1,500 stitches per minute.
Easy Bobbin Replacement
Bobbin replacement is a breeze even with the auxiliary table installed, thanks to a large bobbin case opening and a removable plate in the auxiliary table.
Bobbin Case
Open or close the bobbin case latch to allow the vertical bobbin case to be inserted into or removed from the machine with ease. This bobbin case also allows you to adjust the bobbin thread tension.
Knee Lifter Lever
The knee lifter lever allows you to lift/lower the presser foot without using your hands.
The presser foot can be raised as high as 12 mm, making it easy to insert thick fabrics and large projects.
Machine Threading
The slit in the thread take-up makes threading extremely easy.
Bobbin Winding (Auto Stop)
Prepare the bobbin for winding simply by installing it on the bobbin winder.
The bobbin stops spinning automatically when it is full.
Thread Tension Scale
Use the thread tension scale to easily adjust the tension according to the thread and material to be used.
Portable Power
Sew anytime, anywhere with this portable but powerful machine equipped with a carrying handle.
Accessories to Expand and Enhance Your Quilting Experience
1/4" Presser Foot
Creates even 1/4 inch seams for perfect piecing.
Compensating Presser Foot
Use for stabilizing stitching 1/4" (6.5 mm) to the left of a thick seam.
Even Feed Foot
Powerfully feeds multiple fabric layers from both top and bottom without shifting.
Quilt Guide for Even Feed Foot
Measures rows for evenly spaced quilt lines.

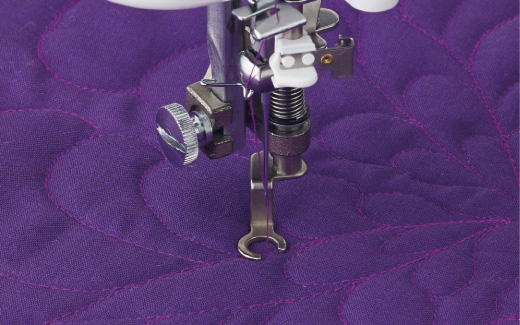

Quilting Foot Front Open Toe
Allows for more visibility during free motion quilting.
1/5" Quilting Foot
Use for free motion quilting to glide smoothly and evenly over fabric layers.

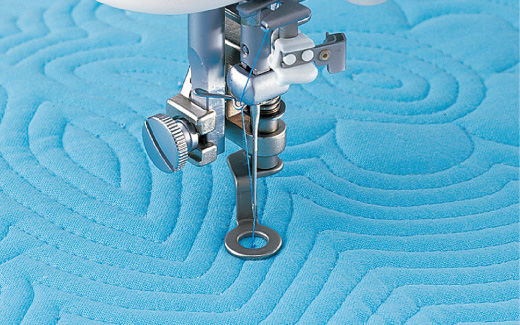

1/4" Quilting Foot
Create equally spaced free motion quilting lines, perfect for echo quilting.
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 452(W) x 350(H) x 219(D)mm |
| Arm size | 215(W) x 150(H)mm 8.5"(W) x 6"(H) |
| Auxiliary table dimensions | 590(W) x 335(D)mm 23"(W) x 13"(D) |
| Dimensions with auxiliary table | 720(W) x 335(D)mm |
| Weight | 11.5kg / 24.5Lb |
| Sewing speed | Min. 55 - Max. 1,500SPM |
| Needle | HAx1(130/705H)/ HLx5 #9-#18 |
| Auto thread trimming | ✓ |
| Thread cutter | ✓ |
| Speed control knob | ✓ |
| Automatic needle threader | ✓ |
| Thread tension dial scale | ✓ |
| Sub tension unit |
✓ |
| Needle stop position | Down |
| Needle up/down &Low-speed inching sewing button | ✓ |
| Drop feed | ✓ |
| Presser foot pressure adjustment | Stepless adjustment |
| Float function(micro-lifter) | ✓ |
| Presser foot lift (1 step/ 2 steps) | By lever Max.10mm, by knee lifter Max. 12mm |
| Stitch length | 0 - 6 mm |
| Light | LED with 4steps brightness adjustment switch |
| Type of hook | Horizontal-axis Full-rotary Hook |
| Bobbin case | Bobbin case with bobbin hold/removal function by latch |
| Attachment mounting plate | ✓ |
| Foot controller | ✓ with thread trimming function |
| Auxiliary table | ✓ |
| Knee lifter lever | ✓ |
| Accessories (presser feet) |
Standard presser foot Hemming foot Zipper attaching foot Even feed foot 1/5" Quilting foot 1/4"Quilting foot Quilting foot front open toe 1/4"Compensating presser foot 1/4" Presser foot |
| Other accessories | Quilt guide for even feed foot Bobbins (4) Needles (HAx1) Foot controller Foot switch stopper Auxiliary table Knee lifter lever Sewing machine cover Power cord Exclusive screwdriver Screwdriver (small) Oiler Spool cap Cleaning brush Instruction manual |
OPTIONAL PARTS

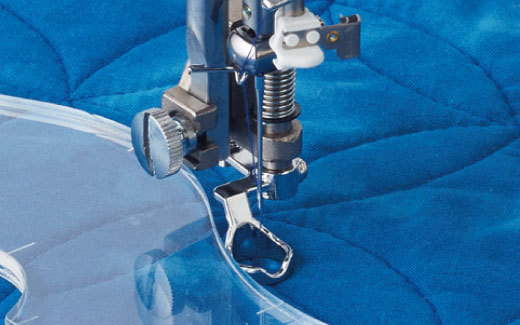

1/4" Quilting Foot (for Ruler)
Echo Quilting Foot

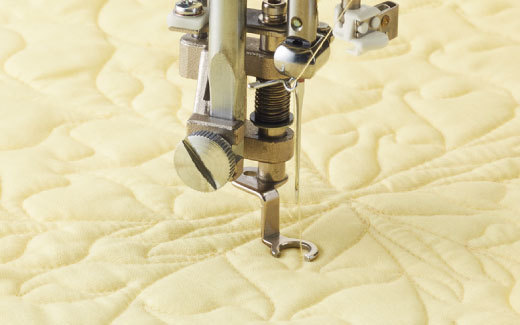

Quilting Foot Side Open Toe
Free Motion Table
タブコンテンツ3（オレンジ線下から）
SEWING SAMPLES
Quilt tapestry
Quilt cushion cover
Quilt bed cover
