PRODUCTS
MO-104DN
2-Needle, 2/3/4-Thread Overlock Machine with Lay-in Type Thread Tension Slots
＊2-Thread converter is optional
4-Thread Overlock
While cutting cloth, it is possible to sew two layers of fabric together and prevent the seam allowance from fraying.

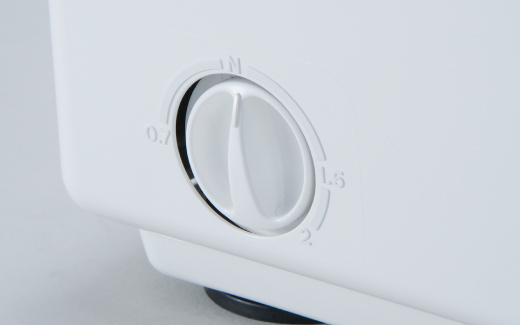

Differential Feed
Differential Feed is easily controlled and adjusted by a dial located on the exterior left hand side.
Materials that stretch easily such as knit fabrics can be finished beautifully using shirring stitch.
Materials that are likely to cause stitch gathering can be finished beautifully using stretching stitch.
Other Features
Lay-in Type Thread Tension Slots
throughout the machine make threading easy and efficient. No wrapping, just follow the color coded thread path.

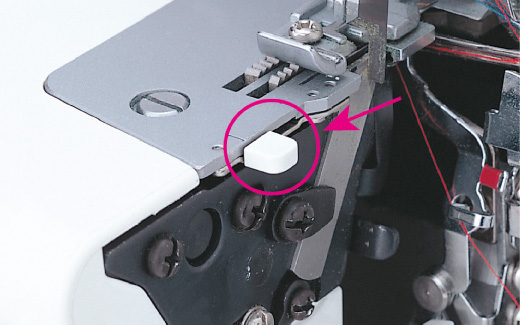

Automatic Rolled Hemming
can be created quickly and easily with built-in fingertip control. There is no need to change the throat plate or foot.
Cutting Width
can be adjusted quickly for perfect seams and rolled edges.
Adjustable Stitch Length
by the knob located inside the machine within the range of 1 to 4mm.
*Adjustable presser foot pressure
*Sewing light（LED）
タブコンテンツ2（オレンジ線下から）
SPEC / ACCESSORIES
| Dimensions | 315(W) x 290(D) x 290(H)mm |
| Weight | 7.0kg |
| Sewing speed | Max. 1,500spm |
| 4-Thread overlock | ✓ |
| 3-Thread overlock |
✓ |
| 2-Thread overcast | Option |
| Rolled hem | ✓ |
| Narrow overlock | ✓ |
| Frill 3-thread rolled hem with diff. feed | ✓ |
| 3-thread flatlock |
✓ |
| Interlock | - |
| Chain stitch | - |
| 4-Thread cover stitch | - |
| 3-Thread cover stitch | - |
| Number of needles | 1/2 Needles |
| Needle | SCHMETZ 130/705 H Nm 70,80,90 |
| Number of threads | 2/3/4 Threads |
| Differential feed ratio | 0.7-2.0 Ratio |
| Easy threader | - |
| Lower looper threader | - |
| TWA (Tweak Width Adjustment) | - |
| Presser foot pressure adjustment | Stepless adjustment |
| Micro-lifter | - |
| Automatic rolled hemming | Automatic rolled hemming lever |
| Retractable upper knife | ✓ |
| 2-Thread converter | Option |
| Thread cutter | - |
| Adjusting cutting width | ✓ |
| Safety design | - |
| Light | LED |
| Presser foot lift (1 step/2 steps) | 5mm/7.5mm |
| Stitch length | 1-4mm |
| Stitch width | Left needle： 5-7mm Right needle： 3-5mm Rolled hem： 1.8-2.2mm |
| Magnet Needle Tray | - |
| Waste collector | Option |
| Knee Lifting Lever | - |
| Operation support | Youtube |
| Accessories | Electronic foot control Spool caps Tweezers Cleaning brush/Needle inserter Nets Looper threader Needle set 130/705 Small screwdriver Oiler Accessory bag Dust cover Instruction manual |
OPTIONAL PARTS
Blind Stitch Presser Foot
Universal Blind Stitch Presser Foot
Elasticator Presser Foot
Cording Presser Foot
Beading Presser Foot
Curved Beading Presser Foot
Piping Presser Foot
Gathering Presser Foot
Waste Collector
タブコンテンツ3（オレンジ線下から）
STITCH PATTERNS
4-Thread Overlock
Uses 2 needles and 4 threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch of overlock machines prevents fabric from fraying.
2-Thread Overcast (option)
Simply sew fabric edges with 2 threads to prevent fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem With Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.
3-Thread Flatlock
Use this stitch as an accent on clothes, interior items and accessories.
