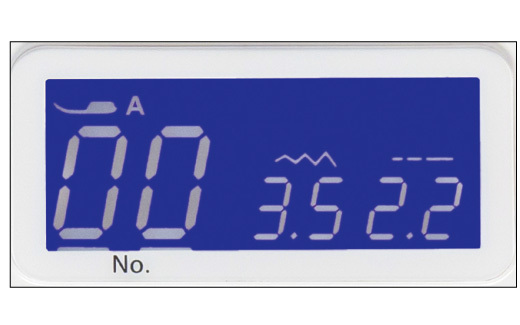

The large, easy to read LCD Screen allows for quick selection of patterns, as well as width and length adjustment.
Slide open chart to view complete stitch selection.

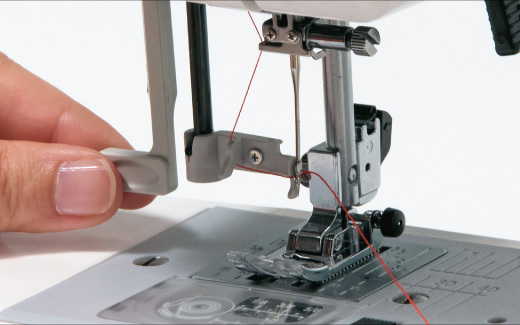

Quick and accurate one step needle threader.

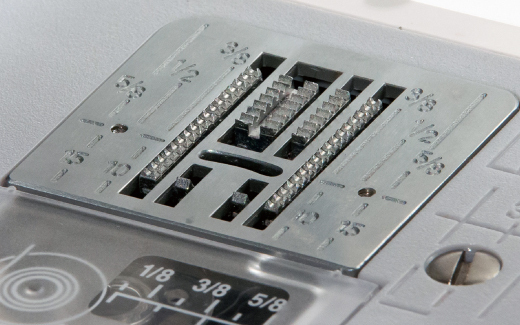

7-Point Feed Dog
Easily sew all types of fabric and accurately piece fabrics for edge to edge.

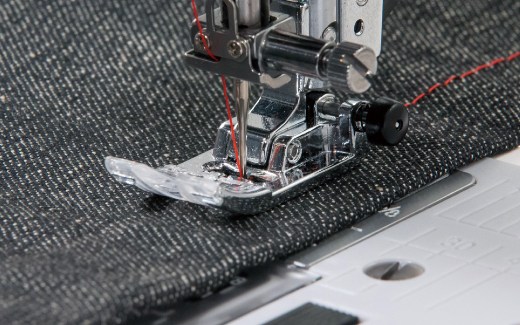

Powerful Even Stitching
Surprising power to sew denim or leather.

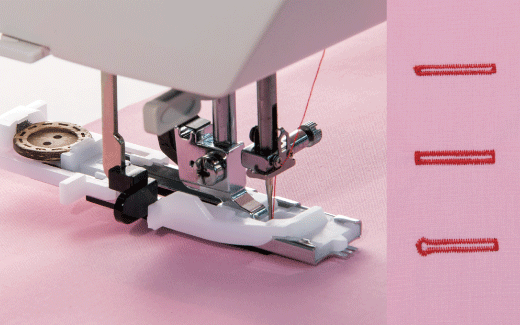

1-Step Buttonhole
HZL-L series sews buttonholes automatically according to the size of the button.

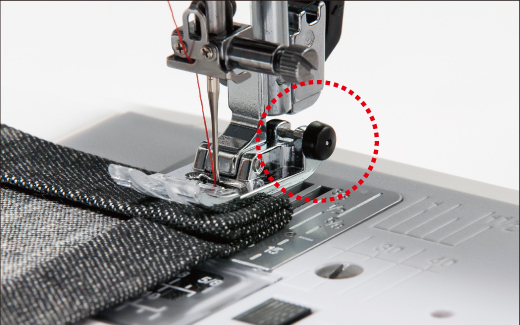

Easy to Start Sewing Overseams
Press the black button of presser foot to make the presser foot parallel to the throat plate. This makes easy to start sewing overseams.
Precise Stop
Press and hold the stat/stop button while sewing to switch to super-slow speed. Release the button to stop sewing precisely where you want to end the stitches.
Needle Stop Position
Press the button to change up-down position of needle instantly. Also you can change the needle stop position.
Two Automatic Lock Stitches
Make an automatic reverse stitch or lock stitch at the beginning and end of straight sewing.
・Free Arm
・Drop-in Bobbin
・Drop Feed
・LED Light
Zigzag foot, Overedge foot, Zipper foot, Satin stitch foot,
Blind hem foot, Automatic buttonhole foot, Spool holder (large),
Spool holder (small) , Additional spool pin, Spool stand,
Spool pin felt, Bobbins ( X 4), Assorted needle set,
Seam ripper, Lint brush, Screwdriver
タブコンテンツ1（オレンジ線上まで）
タブコンテンツ2（オレンジ線下から）
| Control system（Arm size） | Computer (Arm Size 170㎜） |
| Dimensions | 406(W) x 298(H) x 182(D)mm |
| Maximum sewing speed | 700 sti/min |
| Number of stitch patterns | 20 |
| Buttonhole | Automatic
Buttonhole Length: 1.0 - 2.5cm |
| Direct stitch pattern selection | - |
| Start/stop button | 〇
Low-speed inching sewing with pressing continuously |
| Adjustable starting / reverse stitch speed | - |
| Automatic needle threader | 〇 |
| Thread tension system | Standard |
| Needle up/down button | 〇
(Needle stop position switching) |
| Low-speed inching sewing | 〇
Press start/stop button continuously |
| Needle stop position switching | 〇
(Needle up/down button) |
| Lock stitch | Reverse stitch (Button system)
Reinforcement stitch (Button system)
Automatic reverse stitch pattern or reinforcement stitch pattern |
| Feed mechanism | 7 point feed dog |
| JUKI Smart Feed (dual feed function) | - |
| Presser foot pressure adjustment | - |
| Auto presser foot lift system | - |
| Function to straight-line stitching | - |
| Presser foot pivot function | - |
| Presser foot lift (1 step/2 steps) | Lever system: 5mm / 12mm |
| Horizontal presser foot holder button | 〇 |
| Quick bobbin preparation | - |
| Easy bobbin winding (Bobbin winder with independent motor) | - |
| Stitch length | Button system / LCD numerical display
Max. 5mm |
| Stitch width | Button system / LCD numerical display
Max. 7mm |
| Number of needle position (straight stitch/other than straight stitch) | 15 / - |
| Type of hook | Horizontal hook |
| Accessory storage | Auxiliary bed |
| Sewing machine cover | Hard case |
| Accessories (presser feet) | Zigzag foot A (set on the machine)
Overedge foot C
Zipper foot E
Satin stitch foot F
Blind hem foot G
Automatic buttonhole foot R |
| Other accessories_1 | Spool holder (large) (1 set on the machine)
Spool holder (small)
Additional spool pin
Spool stand
Spool pin felt
Bobbins ( X 4) (1 set on the machine)
Assorted needle set
Seam ripper (Buttonhole opener)
Lint brush
Screwdriver
Instruction book
Instructional video DVD
Hard cover
Foot control
Power cable |
Standard Presser Foot
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.
Movie
Overcasting Presser Foot (Overedge Foot)
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage.
This presser foot cannot be used to sew zigzag stitches or overcasting by 5-point zigzag.
Movie
Buttonhole Presser Foot
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.
Movie
Decorate Stitch Presser Foot
(Manual BH Presser Foot/Satin Stitch Foot)
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed.
Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.
Movie
Zipper Presser Foot
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn.
This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.
Movie
Blind Stitch Presser Foot (Blind Hem Foot)
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch.
Adjust the needle entry point before sewing.
You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.
Movie
Auxiliary Spool Pin (Additional Spool Pin)
Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.
Foot Controller
Controlling the sewing machine with your foot leaves both of your hands free while sewing.
Bobbin
Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.
Walking Foot
This presser foot is equipped with an upper feed dog that works together with the feed dog of the sewing machine to feed the material in order to prevent bunched stitching and uneven feeding.
By inserting the quilt guide bar, this presser foot can be used to quilt equally spaced seams.
Movie
Quilt Presser Foot (Zigzag Type)
The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches.
Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.
Movie
Quilt Guide
Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching.
Adjust the spacing of the stitching by changing how far this guide is inserted.
Movie
Wide Table
After removing the auxiliary bed, this table can easily be installed by fitting it into place.
