High-Performance Quilting & Sewing Machine
Effortlessly switch to a straight stitch sewing machine with the revolutionary interchangeable Single Needle System.
Create perfect stitches from beginning to end. No pulling, bunching or pushing fabrics into the needle opening. Smooth handling for perfect piecing, close edges, curves, layers and more.
Using provided T-screwdriver; Install feed dogs, a throat plate, as well as a presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI Industrial sewing machines.
・Straight throat plate
・Straight feed dog
・Straight presser foot (S)
・Standard throat plate
・Standard feed dog
・Standard presser foot (A)
Engage the JUKI Smart Feed (dual feed function) to move the top layer of your fabric in sync with the lower layer. Perfect for Points, precision and quilt layers.
Adjust the feed amount in increments of 0.2mm for beautiful stitching without worried of shifting layered fabrics.
Dual LED Lighting to illuminate the large workspace with an addition of 2 lights over the needle for extra light where you focus.
Adjustable Lighting for any color fabrics. Need more light on dark fabrics? Less light on light fabrics? Set the lighting to best fit your daily sewing.
The micro-lifter presser foot function reduces uneven sewing on quilts and velvets.
(Left) Used this function (Right) Not used this function
Before you begin sewing, raise the presser foot and your feed dogs automatically lower for easy placement of fabrics.
Easily sew appliques with the pivot function.
Adjustable width/length/needle position while sewing. Thread tension will automatically adjust with stitch length and zigzag width.
You can change thread tension with this slide bar.
Select, combine, and save your favorite stitches from and easy-to-use, full-screen list of stitches!
Achieve the optimal finish with our original sensor system.
Lower the feed dogs with the touch of a button. For smooth and effortless free-motion sewing. Transparent quilt presser foot can be used with ruler work (ruler optional).
Thick denim folded into three layers for a flat fell seam. Evenly sews thick fabrics effortlessly.
The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.
No fabric shrinkage even sewing on light weight cotton.
Evenly feeds hard-to-sew high pile fabrics.
Auxiliary box for storing accessories.
Sewing machine cover can store all accessories.
Highly responsive electric knee-lifting lever.
Foot switch can be positioned on left or right.
Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.
To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time, and also use a cutter after winding.
A. cutter B. guide with cutter
The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.
Control system(Arm size) | Computer (Arm Size 304㎜) |
Dimensions | 575(W) x 310(H) x 240(D) mm |
Weight | 14.8kg (32.1lbs) |
Maximum sewing speed | 1,050 sti/min |
Number of stitch patterns | 351 and Alphabetic/numeric fonts:4 Japanese letters font: 1 |
Buttonhole | Automatic (sensor system) with clamping plate Cutting width adjustment Buttonhole Length: 0.7 - 3.2cm |
Direct stitch pattern selection | - |
Start/stop button | Green: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing |
Adjustable starting / reverse stitch speed | 〇 |
Auto thread trimming | 〇 |
Thread cutter | 〇 |
Automatic needle threader | One hand |
Thread tension system | Automatic (digital) |
Needle up/down button | 〇 |
Low-speed inching sewing | 〇 Press needle up/down button continuously |
Needle stop position | Down |
Needle stop position switching | 〇 |
Lock stitch | Reverse stitch (Button system) Reinforcement stitch (Button system) Automatic lock stitch, thread trimming and presser foot lifting |
Feed mechanism | 7 point feed dog BOX Feed |
JUKI Smart Feed (dual feed function) | 〇 |
Presser foot pressure adjustment | Stepless adjustment (digital) / LCD numerical display |
Auto presser foot lift system | 〇 |
Micro-lifter | spec_float_No |
Function to straight-line stitching | Staright throat plate, straight feed dogs and straight presser foot |
Presser foot pivot function | 〇 |
Presser foot lift (1 step/2 steps) | Button system: 6 ・ 8 ・ 10mm / 12mm Lever system: 6mm / 12mm Knee-lifting lever system: 6 ・ 8 ・ 10mm / 12mm |
Horizontal presser foot holder button | 〇 |
Drop feed | 〇 |
Quick bobbin preparation | 〇 |
Easy bobbin winding (Bobbin winder with independent motor) | 〇 |
Bobbin thread detection | Bobbin thread counter |
Stitch length | Dial system / LCD numerical display Max. 5mm |
Stitch width | Dial system / LCD numerical display Max. 7mm |
Number of needle position (straight stitch/other than straight stitch) | 37 / According to pattern |
Pattern reverse | Up/down and left/right |
Twin needle sewing | 〇 (Twin needle is option) |
Lock mode | 〇 |
Elongation | 〇 |
Save/call of patterns | 10 patterns |
Light | 6 LED lights |
Type of hook | Horizontal hook |
Free arm | 〇 |
Cord reel | - |
Knee lifting lever | Electric knee lifting control mechanism |
Foot controller | with separate foot switch (6 functions selectable) |
Wide table | 〇 |
Accessory storage | Accessory box |
Sewing machine cover | Soft cover with accessory storage |
Operation support | Operation guide |
Supported languages | spec_light9lang |
Accessories (presser feet) | Standard presser foot (A) Straight presser foot (S) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Open toe presser foot (O) Patchwork presser foot (P) Quilt presser foot (for the ruler) (Q) Quilt presser foot (zigzag type) Rolled hemming presser foot 7mm guide foot (7) or 1/4" guide foot (1/4) |
Other accessories_1 | DX-3000QVP_spec_accessory_2 |
Other accessories_2 |
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.(Normal type and for JUKI Smart Feed.)
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.

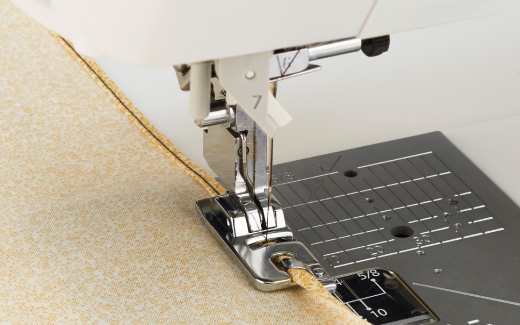

The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.
Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Normal type and for JUKI Smart Feed.)
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Normal type and for JUKI Smart Feed.)
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Normal type and for JUKI Smart Feed.)
With a distance of 1/4" (6.5 mm) from the needle entry point to the outer edge of the presser foot, sew using a ruler as a guide. The front of the presser foot is lowered, making it easier to see the needle area. Adjust the height of the presser foot according to the thickness of the fabric.
The wide needle entry opening allows this presser foot to be used for free-motion sewing with zigzag stitches. Since the presser foot moves up and down together with the movement of the needle, thick seams can easily be crossed.
The wide opening at the front of this presser foot makes appliques and designs easy to see, which is useful for curvy decorative stitching. The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.
Can be used with the Quilt Presser Foot, Quilt Presser Foot (Open Type),Quilt Presser Foot (Zigzag Type), Cording and Embroidery Presser Foot.
Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted. You can use this guide inserting from either the right side or the left side.
Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.
This needle plate is used to sew the straight stitch with the center needle position. Creates perfect needle feed for light weight fabrics or corner to corner stitching in patchwork piecing. Use with straight feed dog (40201411)
This table can easily be installed by fitting it into place.
Controlling the sewing machine with your foot leaves both of your hands free while sewing. You can trim threads and or do another operations by pressing on the another switch of the foot controller.
Using your knee to push the lever to the right raises the presser foot,and when you return it will lower the presser foot.
Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.
Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.(Matte type and for JUKI Smart Feed.)
Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.
Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.
This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.(for JUKI Smart Feed.)
This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.
The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.
The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.
Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Matte type and for JUKI Smart Feed.)
After tape with a width of about 0.75" to 1.0" (22 to 25 mm) is passed through the guide, this presser foot creates double-fold tape with a width of about 0.2" (5 mm) and sews it to bind the fabric. Single-fold tape with a width of about 0.4" to 0.5"(10 to 13 mm) can also be used. You can move the guide to the left or right to adjust the needle entry point.
When sewing pintucks in parallel, the 9 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.
When sewing pintucks in parallel, the 7 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Matte type and for JUKI Smart Feed.)
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Matte type and for JUKI Smart Feed.)
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 7 mm. Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Matte type and for JUKI Smart Feed.)
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 7 mm. Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.(Normal type and for JUKI Smart Feed.)
On the right side of the presser foot, there are guidelines at a 2 mm spacing from 0 to 2 cm from the center of the needle entry opening (center needle position). This presser foot is useful when sewing parallel straight or decorative stitching.
The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Matte type and for JUKI Smart Feed.)
The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )
This presser foot has a shorter guide at its center. With this shorter guide, smoother feed of the material is promised. Furthermore, it is expected to reduce uneven material feed. The marks on the left side of the presser foot will be the guide for the outline quilting. By changing the needle base line, you can sew the single lap stitching with ease.
With the feed dogs lowered, you can freely move the fabric to draw using stitching. Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly. Use with adapter shank (40207583)
Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly. Use with adapter shank (40207583)
Since the front and back of this presser foot are short and transparent, appliqu?s and designs are easy to see, and you can easily sew sharp curves. The pin at the back keeps the presser foot horizontal, stabilizing it even when sewing appliqu?s.
Pass the strand of pearls or beads up to a diameter of 4 mm through the dome-shaped groove in the center of the presser foot, and then sew with a zigzag stitch. This presser foot can also be used for sewing on thick cording, braiding or piping cord, even on curves.
This foot has a claw at its center. It is used for forming loops by laying the thread over the claw. This presser foot can be used for sewing decorative stitches on workpieces by making three-dimensional thread loops and fringes on the edge of the fabric with your favorite threads.
This presser foot has a hole for supplying cording to be sewn over. With the feed dog lowered, you can freely move the fabric to create simple embroidery with cording. Use with adapter shank (40207583)
Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.
This presser foot is provided with seven cord insertion holes of approximately 1 mm in diameter. As many as seven (1 to 7) thin cord(s) or embroidery thread(s) can be sewn using these holes while neatly arranging them in parallel (in the case of two or more cords / threads are used).
For beautiful decorative stitches two threads can be a perfect addition. Also it is used for sewing pintucks with the pintuck feet. Set the sewing machines with 2 needle settings with optional functions. Not all stiches are approved for twin needle design.
Wrap the thread you want to decorate around the bobbin and draw a pattern with pattern stitching or free motion.
This is useful for viewing the needle area or performing intricate operations.
The specially designed thread guide that is also installed smoothly pulls the thread straight up. When placing the hard case on the sewing machine, this thread stand and thread guide can be removed in a single step.
A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.
Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The thickness of these rulers are 3mm.
Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The kit contents and shapes may differ.
Quilting tapestry with free motion
Quilting cushion cover
